Supplier of Draeger X-am 5600 Multi Gas Detector in Dubai (UAE), Abu Dhabi, Riyadh, Jeddah, Saudi Arabia (KSA), Oman, Bahrain, Iraq, Kuwait, Qatar, India, Kazakhstan, DRC Congo, Ghana, Kenya, Nigeria, Tanzania, Indonesia, Malaysia and Vietnam at Best Prices!
Draeger X-am 5600 Multi Gas Detector Supplier in Dubai (UAE) & Saudi Arabia (KSA)
Brand: Draeger - Germany
Model: X-am 5600
Part Number: 8321050

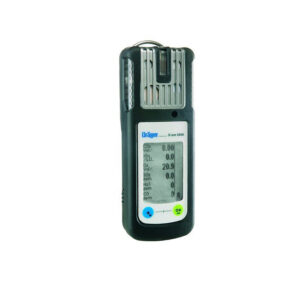

The Drager X-am 5600 is a compact, multi-gas detector designed for simultaneous monitoring of up to six gases, making it ideal for a range of industrial safety applications. Known for its advanced infrared sensor technology, it can detect both combustible and toxic gases, as well as oxygen levels, with high accuracy and fast response times. The device is lightweight and ergonomically designed, ensuring comfortable, long-term use in challenging environments. It features a robust, water-resistant build that meets IP 67 standards, protecting it from dust, water, and harsh conditions.
The X-am 5600 also supports customizable sensor configurations, allowing users to adapt it for specific hazards and operational needs. Enhanced by an intuitive two-button interface and a high-contrast display, it offers easy navigation and clear visibility of gas readings. Integrated with Drager’s X-dock calibration system and compatible with data management solutions, the X-am 5600 supports streamlined testing, calibration, and record-keeping for safer, more efficient operations.
Features of Drager X-am 5600
- Small yet Robust: The X-am 5600 is small, light, and easy to use. It’s designed for single-handed operation in tough industrial environments. It’s water- and dustproof (IP 67) with an integrated rubber boot for optimal functionality under harsh conditions.
- Durable Infrared Technology: Dräger infrared sensors are stable and resistant to contamination, lasting up to eight years. This reduces ownership costs as fewer replacement sensors are needed. Sensor calibration is only required every 12 months, lowering maintenance costs.
- Accurate Measurement: The IR Ex sensor measures explosive hydrocarbons at the lower explosive limit. The IR CO2 sensor provides accurate measurements and warnings against toxic CO2 concentrations. A dual sensor (Dual IR CO2/Ex) offers advantages for applications requiring both measurements.
- Hydrogen Detection: The X-am 5600 combines Infrared Ex and electrochemical H2 sensors for reliable hydrogen detection. It offers poison-free technology for areas previously requiring catalytic Ex sensors.
- Various Monitoring Possibilities: The gas detector detects explosive, combustible, and harmful concentrations of multiple gases, including O2, Cl2, CO, CO2, H2, H2S, and more. The sensors can be easily exchanged, calibrated, or converted using Drager CC-Vision software.
- Flexible Use: An optional external pump, operable with hoses up to 30 meters, is ideal for pre-entry measurements in tanks or pipelines. The X-am 5600 can be combined with the Dräger X-zone 5000 for area monitoring.
- Suitable for Ex-Zone 0: The device is suitable for use in areas where explosive atmospheres are always expected (zone 0).
- Area Monitoring: Up to 25 Dräger X-zone 5000 units can interconnect to form a wireless fenceline, securing large areas quickly, such as pipelines or industrial tanks during shutdowns.
Recommended Applications
-
Dual IR monitoring for CO₂ and hydrocarbons
-
Confined space gas testing
-
Plant turnaround gas checks
-
Emergency response gas assessment
-
Refrigeration system inspection
-
Gas leak surveys in pipelines
-
Storage tank breathing zone testing
-
Hazard assessment in laboratories
-
Gas monitoring during construction tasks
-
Ventilated/non-ventilated area testing
Downloadable
Downloadable
InstruBiz is the supplier & reseller of Drager X-am 5600 Multi Gas Detector in Dubai (UAE), Abu Dhabi, Riyadh, Jeddah, Saudi Arabia (KSA), Oman, Bahrain, Iraq, Kuwait, Qatar, India, Kazakhstan, DRC Congo, Ghana, Kenya, Nigeria, Tanzania, Indonesia, Malaysia and Vietnam.
Drager X-am 5600 Multi Gas Detector
Draeger X-am 5600 Multi Gas Detector Technical Properties
| Dimensions (W x H x D) | 48 x 130 x 44 mm |
|---|---|
| Weight | 220 – 250 g |
| Ambient Conditions | Temperature: -20 to +50 °C (-40 to +50 °C for max. 15 minutes) Pressure: 700 to 1,300 mbar Relative Humidity: 10 to 95 % r.h. |
| Protection Class | IP 67 |
| Alarms | Visual: 360° Audible: Multi-tone > 90 dB at 30 cm |
| Operating Times | ~12 h >250 h without Ex Sensor |
| Charging Time | < 4 h |
| Datalogger | Can be read out via Infrared > 1,000 hours with 6 gases and a recording interval of 1 value per minute |
| Pump Operation | Maximum hose length 45 m; 148 ft |
| Approvals | ATEX, IECEx, CSA (Canada & USA), CE mark, MED, EAC |
Additional Information
| Dual Sensors | ✓ |
|---|---|
| CatEx Fullrange | ✗ |
| D-Light | ✗ |
| Internal Pump | ✗ |
| X-am Pump | ✓ |
| X-zone 5500 Area Monitoring | ✓ |
| Bump Test Station | ✓ |
| X-dock Station | ✓ |
| Bluetooth | ✗ |
| Bodyguard Alarm (Panic alarm / Motionless detection) | ✗ |
| Smart Configuration in Drager Gas Detection Connect | ✓ |
| Support of Drager ConHub (Gateway) | ✗ |
InstruBiz is the supplier & reseller of Drager X-am 5600 Multi Gas Detector in Dubai (UAE), Abu Dhabi, Riyadh, Jeddah, Saudi Arabia (KSA), Oman, Bahrain, Iraq, Kuwait, Qatar, India, Kazakhstan, DRC Congo, Ghana, Kenya, Nigeria, Tanzania, Indonesia, Malaysia and Vietnam.
Buy Drager X-am 5600 Multi Gas Detector at Best Prices from InstruBiz
- InstruBiz supply genuine Drager X-am 5600 Multi Gas Detector.
- We supply Drager X-am 5600 with highly competitive pricing.
- Full logistical support is provided until the product is delivered safely to your door.
- Buy Drager X-am 5600 from InstruBiz to get low prices, strong logistical support, and reliable after-sales service. Please send us your inquiry today!
