Draeger X-am 3500 Multi Gas Detector Supplier in Dubai (UAE) & Saudi Arabia (KSA)
Brand: Draeger - Germany
Model: X-am 3500
Part Number: 8325825
The Drager X-am 3500 is a versatile and reliable multi-gas detection device designed for use in industrial environments where safety is a priority. It is engineered to detect up to four gases simultaneously, including flammable gases and vapors, as well as common toxic gases such as carbon monoxide, hydrogen sulfide, oxygen, and other hazardous substances. The device is compact, lightweight, and built for ease of use, with an intuitive user interface and a high-resolution display that provides clear readings even in challenging conditions. With advanced sensor technology, the X-am 3500 offers fast and precise detection, helping workers quickly identify and respond to potential dangers.
It is also equipped with bluetooth connectivity, allowing seamless integration with Drager’s software and monitoring systems for real-time data transfer and analysis. Durability is a key feature, as the X-am 3500 is designed to withstand harsh industrial environments, ensuring long-lasting performance and reliability. This detector is ideal for confined spaces, personal protection, and a wide range of safety applications, making it an essential tool for enhancing workplace safety.
Features of Drager X-am 3500
- Pump Usage and Optimization: The Drager X-am 3500 is optimized for pump-assisted clearance measurements, featuring a powerful pump that can be connected to hoses up to 45 meters long. Its pump adapter enables easy switching between diffusion and pump modes, conserving energy and extending the pump’s lifespan.
- Verified Sensor Performance: The device’s sensor performance for combustible gases like methane, propane, and n-nonane has been validated by an external body according to EN 60079-29-1 standards. Compact and durable, the X-am 3500 is designed for single-handed use with three function keys and an easy-to-read color display, making it suitable for rugged environments.
- Clear Signaling Design: Its clear signal system uses color-coded lights for intuitive alerts: red for gas alarms, yellow for device-related alarms (e.g., low battery), and green for ready-to-use status. The green D-Light allows users to quickly confirm the device is operational from a distance. In alarm situations, bright LEDs, a 100 dB horn, and vibration provide unmistakable alerts, with optional hazard symbols indicating specific dangers.
- Economical Fleet Management: For economical fleet management, the X-dock calibrating station minimizes test gas usage and operating costs, while the Drager Gas Detection Connect Software enhances reporting and tracking with barcodes or RFID. Inductive charging prevents corrosion and contact issues, prolonging device lifespan, and allowing charging and measurement simultaneously outside explosive zones.
Recommended Applications
-
Confined space entry and monitoring
-
Personal gas exposure monitoring
-
Leak detection in industrial environments
-
Pipeline and tank inspection
-
Maintenance and shutdown operations
-
Hot work safety and confined area welding
-
Gas detection during construction and excavation
-
Safety checks in refineries and chemical plants
-
Emergency response and rescue operations
-
Portable monitoring in waste management facilities
Downloadable
Downloadable
InstruBiz is the supplier & reseller of Drager X-am 3500 Multi Gas Detector in Dubai (UAE), Abu Dhabi, Riyadh, Jeddah, Saudi Arabia (KSA), Oman, Bahrain, Iraq, Kuwait, Qatar, India, Kazakhstan, DRC Congo, Ghana, Kenya, Nigeria, Tanzania, Indonesia, Malaysia and Vietnam.

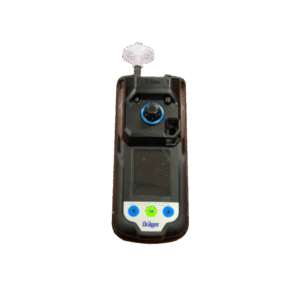

Drager X-am 3500 Multi Gas Detector
Draeger X-am 3500 Multi Gas Detector Technical Properties
| Dimensions (H x W x D) | 179 x 77 x 42 mm |
|---|---|
| Weight | Approx. 550 g, depending on sensor configuration, without strap, with pump |
| Housing | Durable two-component housing |
| Display | High-contrast colour display |
| Temperature | -20 °C to +50 °C |
| Pressure | 700 to 1,300 hPa (measuring function) 800 to 1,100 hPa (use in explosion-hazard areas) |
| Relative Humidity | 10 to 90 % (short-term up to 95 %) r.h. |
| Alarms | Visual: 3 LED ‘red’ (gas alarms), 3 LED ‘yellow’ (device alarms) Acoustic: Multi-tone, typically 100 dB(A) at 30 cm |
| Ingress Protection Class | IP68 |
| Energy Supply | Lithium-ion battery, rechargeable, inductive charging |
| Operating Times (Diffusion) | With CatEx and 3 EC sensors – Typically 24 hours With 3 EC sensors – Typically 120 hours |
| Charging Times | Typically 4 hours after use during a shift of max. 10 hours |
| Start-up Times | Typically <60 seconds for standard sensors |
| Data Storage | 24 MB, e.g. at 10 minutes per hour of gas exposure with measuring values changing by the second on all 4 channels: approx. 600 hours |
| Pump Operation | Max. hose length 45 m |
| Approvals | ATEX / IECEx, EAC, cCSAus, ANZEx, EMV, RoHS, MED, DNV GL |
| Manufacturer’s Warranty | 3 years for the device |
Additional Information
| Dual Sensors | ✗ |
|---|---|
| CatEx Fullrange | ✗ |
| D-Light | ✓ |
| Internal Pump | ✓ |
| X-am Pump | ✗ |
| X-zone 5500 Area Monitoring | ✗ |
| Bump Test Station | ✗ |
| X-dock Station | ✓ |
| Bluetooth | ✗ |
| Bodyguard Alarm (Panic alarm / Motionless detection) | ✗ |
| Smart Configuration in Drager Gas Detection Connect | ✗ |
| Support of Drager ConHub (Gateway) | ✗ |
